Machine park

• Work table 4,000 x 2,000 mm
• Steel up to 25 mm
• Stainless steel up to 20 mm
• Aluminium up to 12 mm
• Perfect quality
• Smooth cutting edges
• Flexible layout
• Filigree cutting oft hick construction steel
• Short delivery times

TRUMPF Liftmaster Automation

Palette de chargement / palette de déchargement avec enlèvement automatique des tôles en acier dans les tiroirs

• Precise sheet metal bending and edging
• Up to 400 t
• Steel, stainless steel, aluminium up to 20 mm material thickness
• Max. working length: 4,000 mm
• Laser measurement – highest accuracy
• Large variety of tools, all types of construction / bends
• Short delivery times

• Precise CNC bending, filigree, thin parts
• Up to 220 t
• Steel, stainless steel, aluminium up to 5 mm material thickness
• Max. working length: 4,270 mm
• Laser measurement – highest accuracy
• Large variety of tools, all types of construction / bends
• Short delivery times

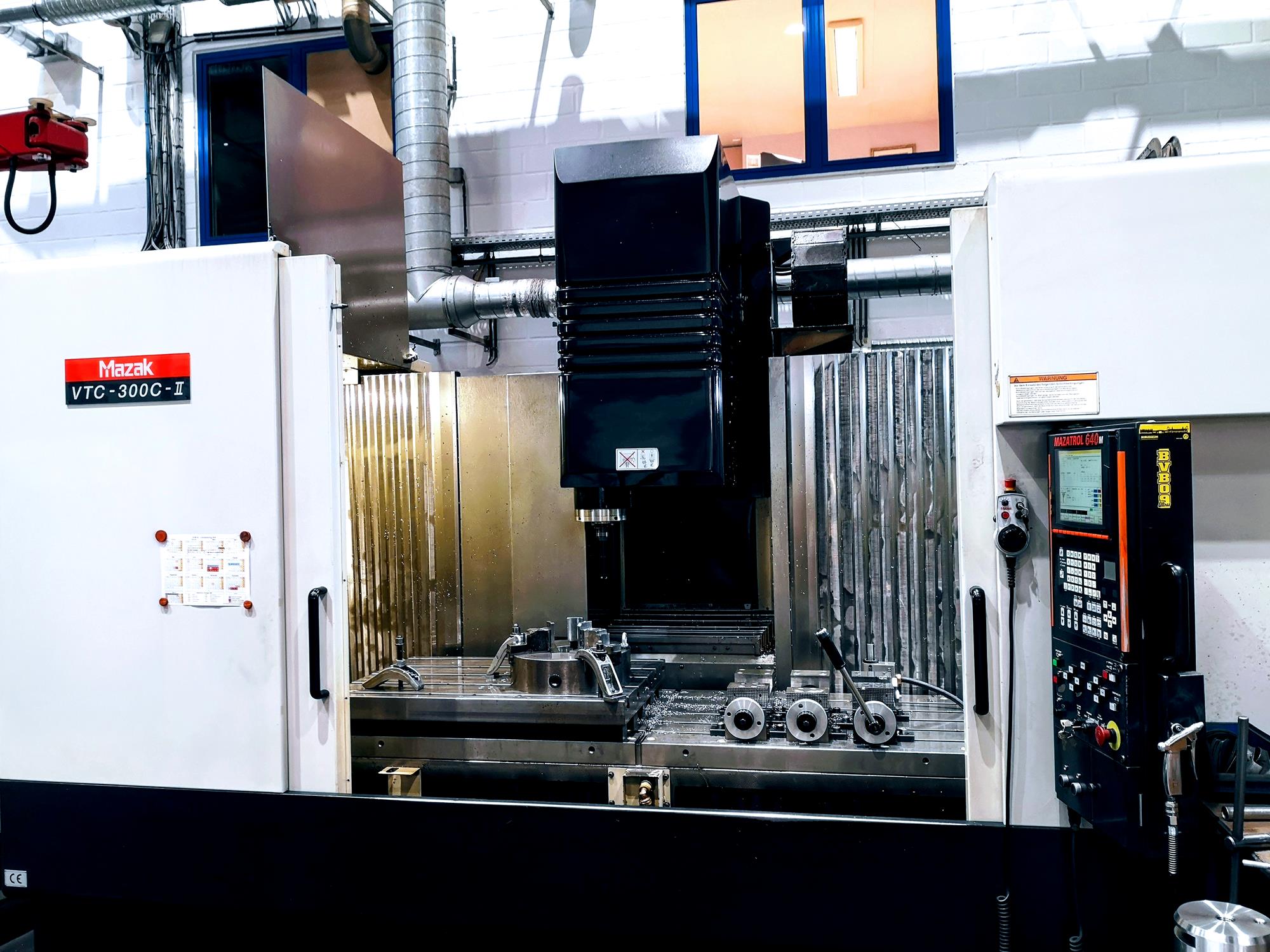

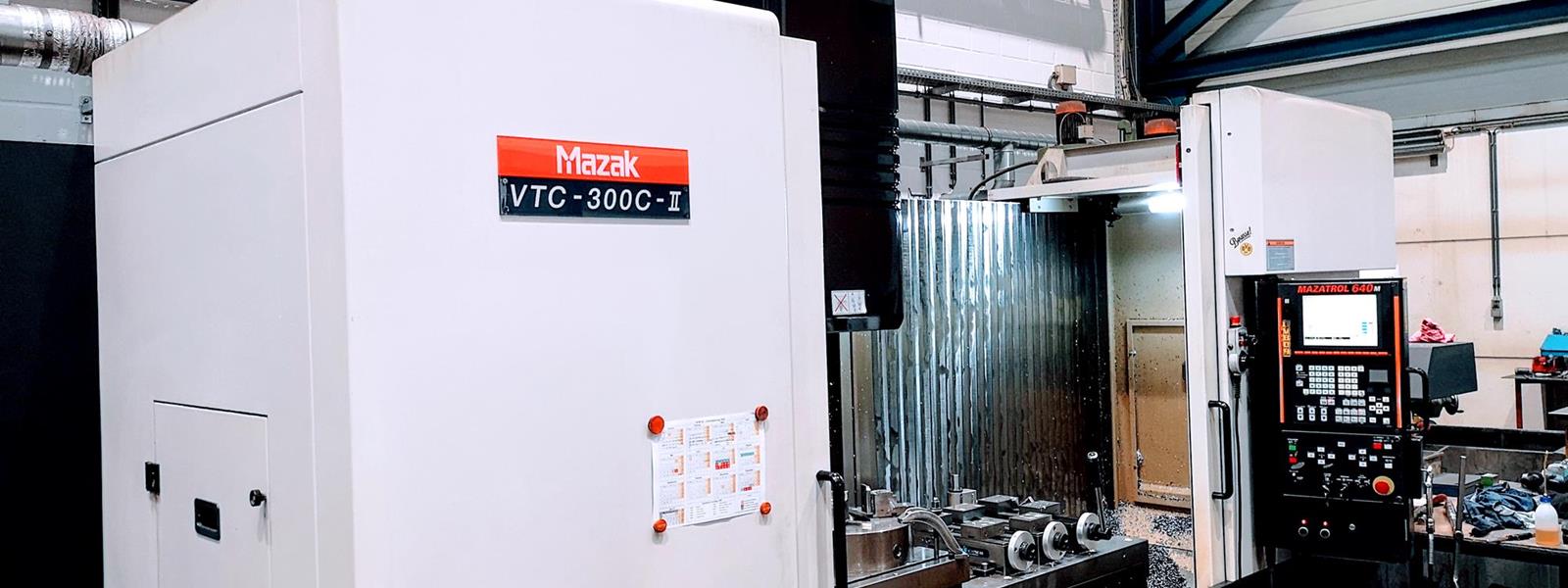

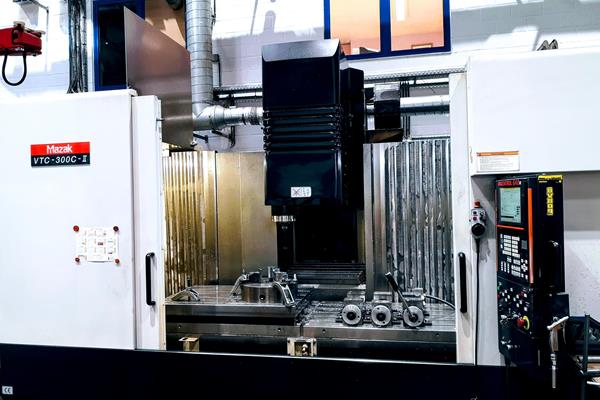

• Combination of fixed table (3,000 mm x 850 mm) with integrated rotary table (Ø 800 mm)
• 4-axis traveling column with infinitely adjustable swivel head (+- 105°)
• Travel paths: X 3,000 mm / Y 800 mm / Z 806 mm / C (rotary table) 360°
• Internal cooling up to 70 bar
• Spindle speed: 12,000 rpm (SK-40)
• Max. workpiece dimensions: 3,000 mm x 800 mm x 800 mm
• Max. table load: 1,500 kg/m²
• Max. rotary table load: 1,500 kg
• Large tool magazine - 60 slots
• NC positioning device with spindle in horizontal working axis up to Ø 350 mm
• Fast, flexible, precise CNC machining

• Bed milling machine with integrated rotary table: 1,600 x 1,250 mm
• 5-axis UAD swivel head
• Travel paths: X 3,000 mm / Y 1,500 mm / Z 1,500 mm
• Spindle speed: 6,000 rpm (SK-50)
• Max. workpiece dimensions: Ø 2,500 x 1,500 mm
• Max. table load: 10 tons
• Large tool magazine – 60 slots
• Well suited for heavy CNC machining

• Travel paths: X 1,740 / Y 760 / Z 660 mm
• Table: 760 x 2,000 mm
• Fast, precise mechanical processing
• Tool magazine: 48 slots
• Pendulum machining possible
• Small and serial parts

• Universal lathe with driven tools
• Chuck diameter: Ø 465 mm
• Turning diameter up to bed slide: Ø 680 mm
• Total turning length: 950 mm between centres
• 12-position tool turret
• Versatile, fast, precise mechanical machining
• Single parts, series parts, small series

• Pickled steel – ideal for welding fabrication, better surface quality, no slag residues (no pre-cleaning necessary before welding)
• Automated high bay racking works day and night – high utilisation / optimal capacity
• High stock level – very good availability

The Spaziomatic bar magazine is an automatic magazine used for storing long semi-finished products such as bars, profiles and tubes. This storage place provides an orderly storage and removal of individual or bundled materials with different lengths, dimensions and weights.
